| Specifications |
Camera
|
Solution: |
OV9712 CMOS Sensor+Hi3518ESoC |
| Resolution: |
720P(1280×720px) |
| Field of View: |
166°Wide Angle |
| Night Vision: |
6IRLEDs, 5m(16ft)NightVision |
Videos
|
Video Quality: |
HD720P@25FPS |
| SceneOption: |
BLC, IR, HLC, Motion Compensation, WDR |
| Motion Sensor: |
SmartPIRSensor(SensitivityEditable) |
| D/N Mode: |
AutoswitchbyLightSensor |
Audio
|
Pickup Device: |
InternalMicrophone |
| PickupRange |
5meters |
| Audio Output: |
Speaker |
| Type: |
2-wayAudiowithNoiseCancellation |
connection
|
Network: |
2.4GHz WiFi (IEEE802.11b/g/n) |
| OSRequire: |
iOS(v7.0ornewer) or Android(v4.0ornewer) |
Storage
|
Memory Device: |
8GB Class 10 High-speed TF card Preinstalled |
| Storage Capacity: |
Max Support 32GB TF card |
LED Indication
|
Red LED Flash: |
PowerOK,WaitingforWiFiConnection |
| Blue&Red Flash: |
WiFiSettingSucceed, WaitingforAPPConnection |
| Blue LED Flash: |
Power&NetworkOK,DeviceinWorkingStatus |
| LEDOFF: |
NoPower/StandByMode |
Power
|
Power Type: |
Rechageable18650BatteryorHardwireAC12V-24V |
| Consumption: |
Working mode: 170mAStandbyMode: 200μA |
| Dimensions: |
L75mmxW40mmxH143mm |
| Packing Size: |
L183mmxW105mmxH70mm |
| Weight: |
600g |
| Working temperature: |
-20℃to55℃ |
| Relative humidity: |
85% non-condensing |
Features:

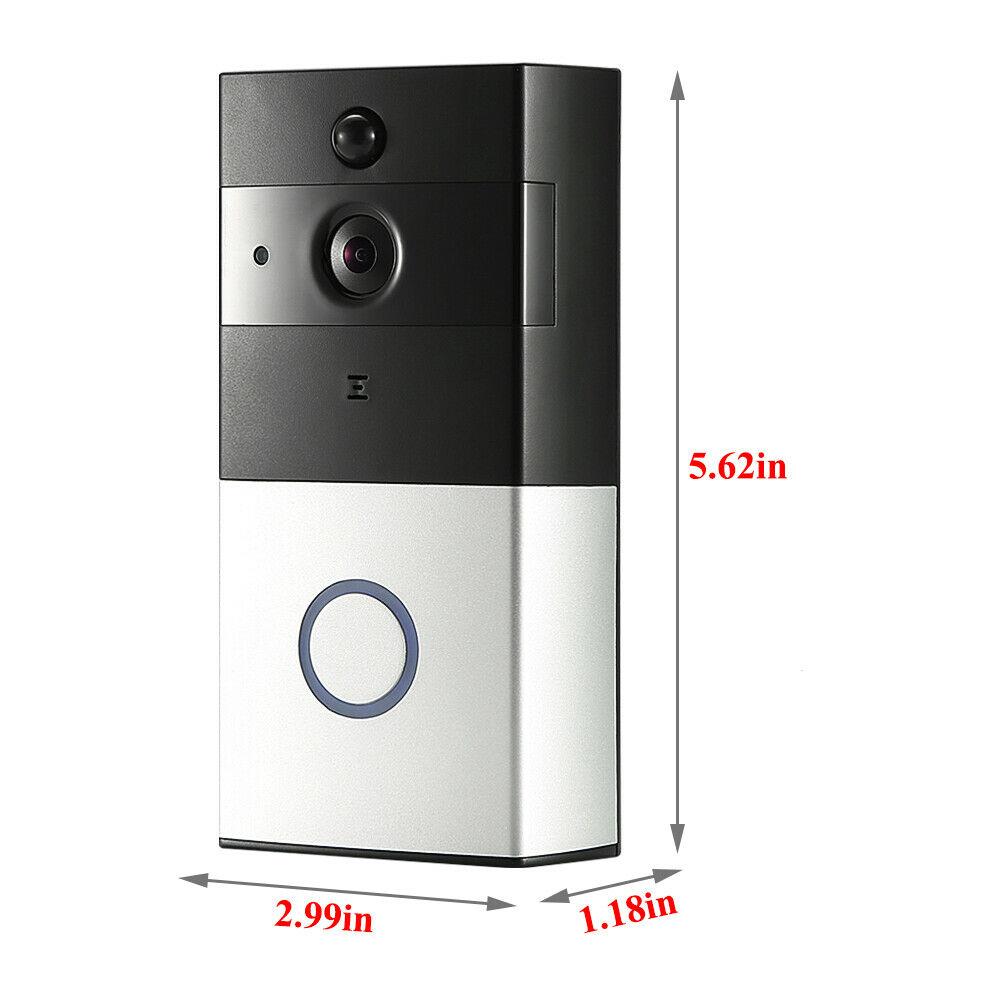

* Wireless Battery Powered Smart Video Doorbell
* Low power consumption, 8-10 Month's battery life (2 × 18650 Batteries)
* HD 720P Video Quality, support night vision, camera view angle covers 166°
* WDR, HLC, BLC, Motion Compensation, Quick Access by Smartphone
* PIR motion sensor with 120° detection angle, accurate motion detection
* Support WiFi, Free P2P cloud service, push alarm to mobile via APP.
* Support 2-way audio communication, answer your door wherever you are.
Eighteen: If u choose no battery, it is not including with battery, u need prepare for urself before using the doorbell.
